Retaining Wall Design for Blackburn Projects

Blackburn sits on the western edge of the Pennines, where the bedrock sequence shifts from Millstone Grit in the north to Coal Measures clays and shales under the town centre. Soil profiles here are highly variable: stiff glacial till over weathered mudstone in the higher ground, alternating with soft alluvial deposits along the River Blakewater and its tributaries. For any retaining wall design in Blackburn, the critical first step is understanding the perched water tables that form after heavy rainfall. We have measured groundwater at depths of only 0.8 m in the lower-lying industrial estates near the M65 corridor. That water pressure alone can double the load on a wall if not accounted for in the drainage design. Our team combines borehole data with plate load tests to calibrate stiffness parameters for each stratum before finalising the wall geometry.

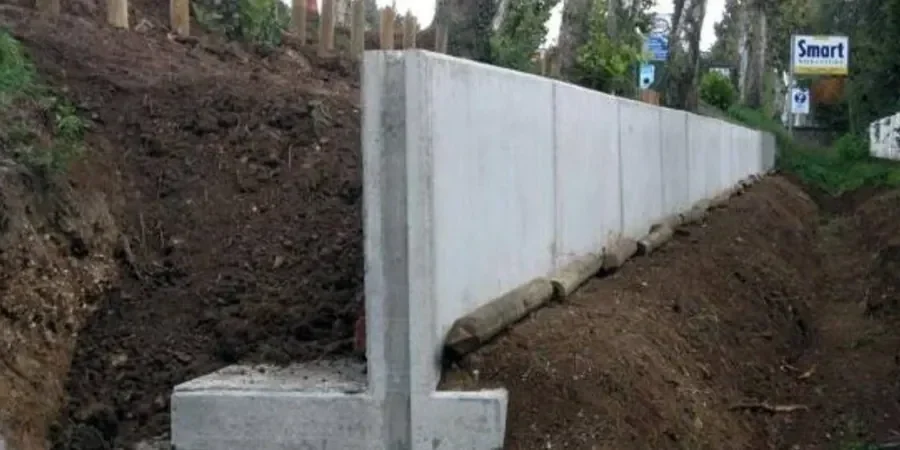

Illustrative image of Retaining wall design in Blackburn

Perched water tables at 0.8 m depth in Blackburn’s low-lying areas can double the design load on a retaining wall unless drainage is correctly modelled.

Technical details of the service in Blackburn

The differences in soil behaviour between Brownhill and Feniscowles illustrate why a single wall type rarely works across Blackburn. In Brownhill, where sandy clay till overlies competent sandstone at 3–4 m, a conventional reinforced-concrete cantilever wall is often the most economical solution. The till provides adequate bearing and a stiff base. Over in Feniscowles, close to the floodplain, we encounter soft organic clay and peat layers exceeding 5 m in thickness. There, an MSE wall with a lightweight granular fill and a deep drainage blanket becomes necessary to control long-term creep and hydrostatic pressure. Every retaining wall design in Blackburn must account for these lateral variations. We always check the plasticity index of the clay fraction — values above 45 % are common in the Lower Coal Measures — because that drives the active pressure coefficient. A soil classification by Atterberg limits is part of our standard laboratory suite before we run sliding and overturning checks.

Retaining Wall Design for Blackburn Projects

Parameter	Typical value
Active earth pressure coefficient (Ka)	0.28 – 0.45 depending on plasticity index
Design groundwater level (worst case)	0.8 m below ground surface
Allowable bearing capacity (till)	180 – 250 kN/m²
Allowable bearing capacity (alluvium)	60 – 100 kN/m²
Wall backfill friction angle	30° – 34° (crushed limestone preferred)
Factor of safety against sliding (ULS)	1.35 per Eurocode 7
Maximum wall height for cantilever	5.0 m (beyond that, use anchored or propped system)

Procedure video

Risks and considerations in Blackburn

A 4 m high basement wall we designed near Blackburn Cathedral faced a common problem: the contractor excavated a trench and left it open for three days during a wet spell. The till softened, the water table rose, and a section of the temporary face collapsed into the excavation. That incident delayed the programme by six weeks and cost £12 000 in additional shoring and re-compaction. In Blackburn, a retaining wall design must include a solid temporary works scheme — either soldier piles with lagging or a soil-nailed slope — because the Pennine clays lose strength rapidly once exposed. We now specify a minimum 200 mm drainage layer behind every permanent wall, connected to a perforated pipe at the toe, to prevent the hydrostatic build-up that caused that collapse.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Applicable standards: Eurocode 7 (BS EN 1997-1:2004) – Geotechnical design, BS 8002:2015 – Code of practice for earth retaining structures, AASHTO LRFD 8th edition (section 11) – MSE wall design, CIRIA C760 – Guidance on embedded retaining walls

Our services

We deliver two core retaining wall services in Blackburn, each tailored to the local ground conditions described above.

Gravity & Cantilever Wall Design

For sites with competent till or weathered rock within 3 m of the surface, we design reinforced-concrete cantilever walls and mass gravity walls. The service includes bearing capacity checks, sliding and overturning verification, reinforcement detailing per BS EN 1992, and a full drainage scheme with weep holes and filter geotextile. We provide stamped calculations and construction drawings for Building Control approval.

MSE & Anchored Wall Design

Where soft ground, space constraints, or heights above 5 m rule out cantilever options, we design mechanically stabilised earth (MSE) walls with steel or polyester strips, and anchored walls with permanent ground anchors. The service covers internal stability analysis, pull-out capacity verification, corrosion protection design, and long-term creep assessment for the Blackburn alluvial clays.

Common questions

What is the typical cost range for a retaining wall design in Blackburn?

For a standard residential project (wall height 1.5–3.0 m), design fees including site investigation and structural calculations fall between £880 and £3 090. Commercial or tall walls requiring anchored systems or complex drainage can exceed this range. The final fee depends on wall length, ground conditions, and the level of site investigation needed.

Do I need a geotechnical investigation before the wall design starts?

Yes. Without boreholes or trial pits, we cannot determine the soil strength, groundwater level, or presence of soft layers that govern the wall type and dimensions. In Blackburn, where the geology changes from till to alluvium within 200 m, a desk study alone is insufficient. We recommend at least two boreholes to 1.5 times the wall height, complemented by laboratory tests on undisturbed samples.

How do you handle groundwater behind the wall in Blackburn?

We design a drainage blanket of clean gravel at least 200 mm thick, wrapped in a non-woven geotextile, connected to a perforated pipe at the wall toe. A hydrostatic pressure analysis using the worst-case water table (often 0.8 m deep in Blackburn’s low areas) ensures the wall is sized for the full saturated condition. We also specify a weep hole pattern at 1.5 m centres to relieve any residual pressure.
