Blackburn sits on a mix of glacial till, alluvial deposits, and Coal Measures mudstone – a sequence that varies markedly within a few hundred metres. When we design a sheet pile wall here, the first question is always the groundwater regime: perched water in the till or a deeper confined aquifer in the sandstone beneath. Getting that wrong means wall failure or uncontrolled seepage. That is why before any sheet pile wall design in Blackburn we run a phased investigation – boreholes, standpipes, and at least one pumping test. The data feeds directly into the cantilever or anchored wall model under Eurocode 7. For sites with made ground or soft alluvium along the Leeds and Liverpool Canal corridor, we also recommend a geotechnical study for retaining walls to cross-check global stability and bearing capacity.

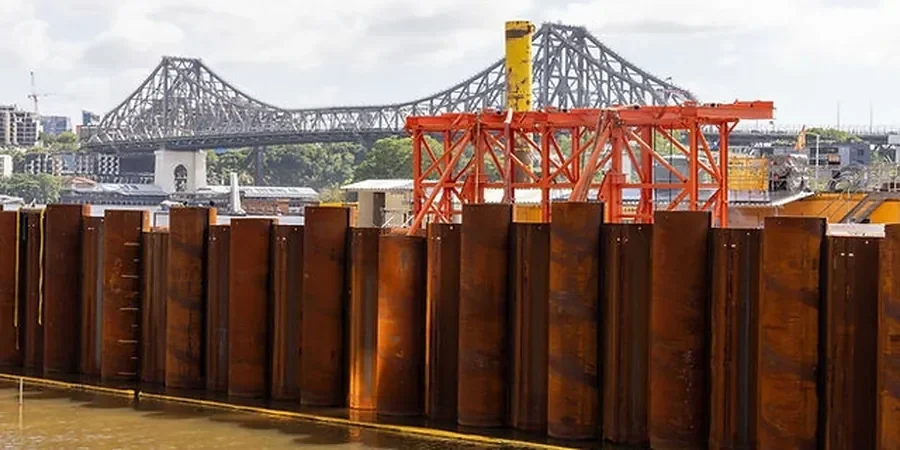

Illustrative image of Sheet pile wall design in Blackburn

Blackburn’s glacial till can exceed 5 m depth – sheet pile walls here must account for dense cobble layers that alter driving stresses.

Technical details of the service in Blackburn

The glacial till in Blackburn is dense and often contains cobbles – a material that can damage pile toes if the driving method is not matched to the ground. We specify sheet piles with thicker web sections and use vibratory hammers to reduce noise and vibration near residential areas. For walls requiring tieback anchors, we install them in the underlying sandstone where pullout capacities exceed 600 kN per metre. Our sheet pile wall design in Blackburn follows the limit state approach of BS EN 1997-1:2004, checking both ULS (structural failure) and SLS (excessive deflection). We also assess corrosion risk: Blackburn’s industrial legacy means elevated sulphate levels in some brownfield sites, so we specify sacrificial steel thickness or protective coatings accordingly. The team has completed walls up to 12 m retained height in the town centre, working alongside piling contractors to align the design with available crane access and headroom constraints.

Sheet pile wall design in Blackburn – geotechnical expertise for deep excavations

Parameter	Typical value
Retained height range	3 m – 12 m
Typical pile section	PU 18 – PU 28 (ArcelorMittal or equivalent)
Design standard	BS EN 1997-1:2004 (Eurocode 7)
Corrosion allowance (brownfield)	2 mm – 4 mm sacrificial steel
Maximum tieback capacity in sandstone	> 600 kN/m
Groundwater control method	Deep wells or wellpoint system inside excavation

Risks and considerations in Blackburn

A five-storey basement excavation near Blackburn railway station encountered a perched water table that rose 1.5 m after heavy rain – the sheet pile wall had been designed for drained conditions only. Without contingency drainage, the wall deflected 35 mm overnight. We now always include a worst-case flood scenario in the wall design, with weep holes and a gravel drain behind the piles. Another common risk in Blackburn is the presence of shallow mine workings from the 19th century; if a void collapses under the toe of the wall, the passive resistance is lost instantly. Our site investigation includes probe holes to identify any voids before the sheet pile wall design in Blackburn is finalised.

This service complements our laboratory testing work for a complete project analysis.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Applicable standards: BS EN 1997-1:2004 (Eurocode 7 – Geotechnical design), BS 5930:2015 (Site investigation code of practice), CIRIA C580 (Embedded retaining walls – design and construction)

Our services

We provide two specialist services that support every sheet pile wall design in Blackburn:

Geotechnical site investigation for walls

Rotary core drilling, SPTs, and groundwater monitoring to characterise the till, alluvium, and bedrock. We label soil samples for Atterberg limits and triaxial testing under drained and undrained conditions.

Structural wall design and verification

Limit state calculations for cantilever and anchored walls, including bending moment, shear, and deflection checks. We produce bending schedules and construction drawings ready for tender.

Common questions

What is the typical cost range for sheet pile wall design in Blackburn?

For a standard 6 m retained height wall, the design fee typically falls between £1,230 and £3,570 depending on the number of anchor rows and the complexity of the groundwater control. Final cost is confirmed after the site investigation results.

How deep can a sheet pile wall go in Blackburn’s glacial till?

We have designed walls to 12 m retained height in the town centre. The till itself is dense and can contain cobbles up to 200 mm diameter, so pile driving requires careful selection of hammer energy and toe reinforcement. Deeper walls need a two-level anchor system.

Do I need a groundwater lowering scheme alongside the sheet pile wall?

Almost always yes. The water table in Blackburn’s alluvial valleys is within 2–4 m of the surface. Without dewatering, hydrostatic pressure on the wall can double the bending moment. We design a wellpoint or deep well system as part of the wall package.
